Agent Observability

Data Masking

Ask AI
Open in ChatGPTOpen in ClaudeOpen in GeminiOpen in PerplexityView Markdown

How GGX masks personal data in LLM traces before storage: built-in PII detectors, per-project content capture, custom rules, and proof on every span that masking ran.

Before anything is stored, GGX masks personal data in every span, from every source. Masking covers inputs and outputs, error messages, exception details, event text and attribute values, including values inside JSON and numbers that look like card or social security numbers.

Text
Sent My card 4111 1111 1111 1111 exp 12/25 was stolen. SSN 123-45-6789, reach me at [email protected]
Stored My card [CARD] exp 12/25 was stolen. SSN [SSN], reach me at [EMAIL]

Built-in detectors

Section titled “Built-in detectors”
Detector Replaced with Notes
Email address [EMAIL]
Phone number [PHONE]
US social security number [SSN] Dashed form in text; nine-digit numeric values too
Payment card number [CARD] Checked with the Luhn digit, with or without spaces and dashes
IBAN [IBAN] Checked against the country’s length and check digits
IPv4 address [IP] Version numbers such as version 1.2.3.4 are left alone

Managing a project’s policy

Section titled “Managing a project’s policy”

Open Monitor & Track → Tracing → Data masking and pick a project. The page shows the policy version and who last changed it.

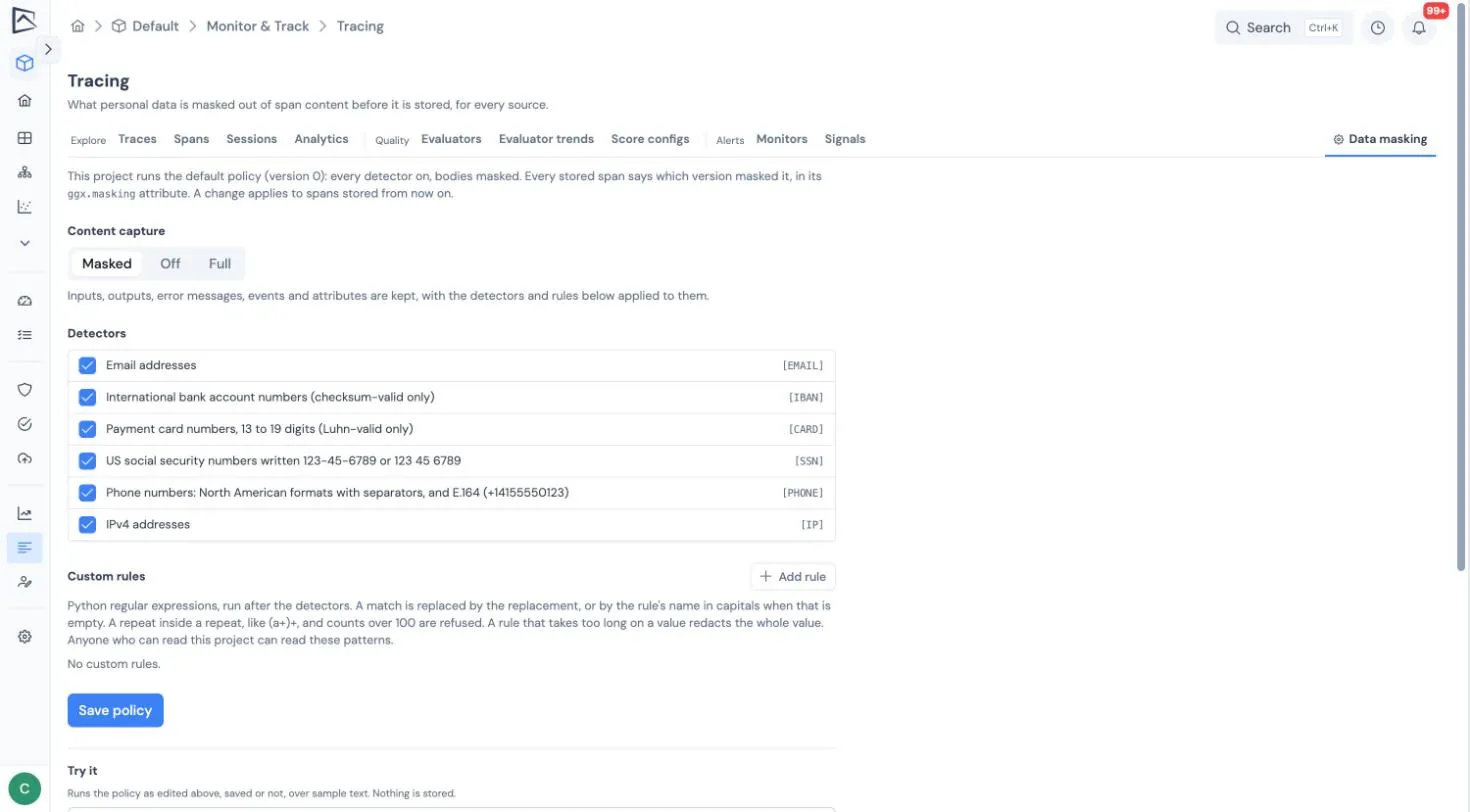

The Data masking page with content capture set to Masked, the six built-in detectors switched on, and the custom rules section

  • Content capture is Masked (the default: store content with personal data masked), Off (store no bodies at all), or Full (store content unmasked; organization admins only).
  • Detectors can be switched on or off individually.
  • Custom rules (up to 20) add your own patterns, such as internal account numbers, each with its own replacement token.
  • Try it masks a sample text with your draft policy before you save it.

Project editors can tighten masking: add detectors or rules, or switch capture to Off. Anything that weakens it, such as turning a detector off, removing or changing a rule, or moving from Off back to Masked, needs an organization admin.

Proof that masking ran

Section titled “Proof that masking ran”

Every stored span carries a ggx.masking attribute naming the policy version and detector version it passed through, for example v3+d2. It is written by GGX and cannot be set by the sender. The trace page shows how many of a trace’s spans were masked.

What is not masked

Section titled “What is not masked”
  • Span names, user and session ids, tags and resource attributes are not masked, because they are used to group and filter traces. Keep personal data out of them.
  • Custom rule patterns are visible to everyone who can read the project.
  • Error text from GGX’s own AI features is reduced to the exception type unless your administrator has turned on content capture for platform traces.
